Danfoss Contactor Ranges CI6 - CI50
The Danfoss contactor programme CI 6-50 is based on three frame sizes. The smallest frame size consists of CI 6-15 (2.2-7.5 kW), the middle contains the CI 16-30 range (7.5-15 kW) and the largest frame size is represented by the CI 32-50 (15-25 kW). All frame sizes are provided with three NO main contacts. CI 6-15 are available with four NO main contacts. A long electrical lifetime makes the CI 6-50 contactors suitable for operation of all kinds of electrical loads in modern industry. Combined with a thermal overload relay, the contactor switches and protects induction motors against overload and asymmetric load. A wide range of clip-on aux. contacts, timers, surge suppressors, mechanical interlock and marking plates makes the CI 6-50 programme very flexible and suitable both for OEMs and panel builders. - Compact design in three frame sizes - Screw or DIN rail mounting - Power range 2.2 to 25 kW - For ac coil voltages The CI 6-50 range also includes thermal overload relays for protection of squirrel-cage motors.
|
|
|
Danfoss Contactor Type CI6 - CI 50 - CI , CI4 , CI5 , CI6 , CI9 , CI12 , CI16 , CI25 , CI32 , CI40 , CI45 , CI50 , CI61 , CI86 , CI110 , CI180 , TI9 , TI16 , TI25 , TI80 |
Danfoss contactors CI 6-50 cover the power range 2.2-25 kW. CI 6 is built up as a combined contactor/control relay. CI 9 DC - 30 DC and CI 9 EI-30 EI are contactors for DC coil voltage within the power range 2.2-15 kW. The range CI 9 EI- CI 30 EI has built-in interface relay for PLC application with 24 V DCoutput. Accessories include a wide selection of clip-on auxiliary contact blocks and timers, interface modules and RC links. The CI 6-50 range also includes thermal overload relays for protection of squirrel-cage motors. |
Data Sheet Danfoss Contactors Type CI6 - CI50 pdf
|
Buy Online Now!
|
|
|

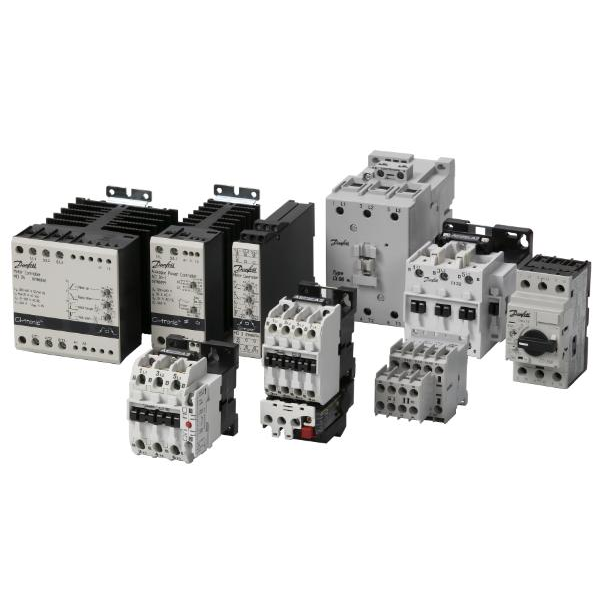

Danfoss Contactors And Motor Starters - |
Danfoss contactors and Danfoss motor starters provide trouble-free switching and maximum protection for your costly motors and other electrical equipment. The components are compact, easy to install and extremely reliable. They have been designed to meet our customers’ requirements, based on comprehensive application experience. More than sixty years of manufacturing experience ensure that our contactors and motor starters stand out with regards to quality and long life.
For the complete range of Danfoss motor control equipment - CLICK HERE |
|
